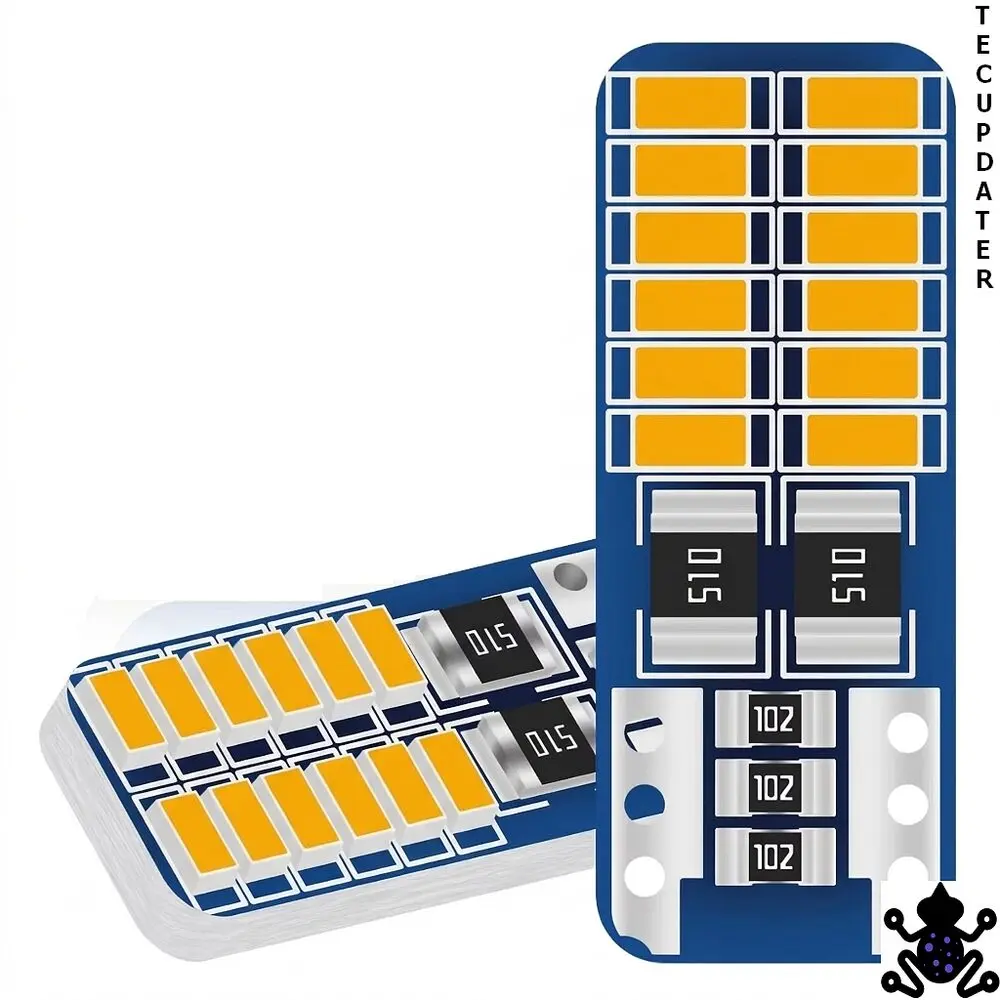

Amber T10 W5W LED Bulb Pair – 24-SMD 3014 Chip, Canbus, Fits Cars and Bikes
Fitting any T10 or T15 socket as a halogen replacement, the amber T10 W5W LED bulb pair uses a 24-SMD 3014 chip with resistors for Canbus compatibility. Meant for turn indicators and side markers on cars and bikes, the amber T10 W5W LED bulb pair is polarised, so rotate it if it doesn’t light up.
| 🏷️ Brand | TecUpdater |
| 💡 Bulb Type | T10 / W5W – also fits T15 sockets |
| 🟡 Colour | Amber |
| 🔆 Chip Type | 3014 SMD |
| 🔢 SMD Count | 24 per bulb |
| ⚡ Voltage | 12V DC only |
| 📡 Canbus | Compatible – built-in resistors |
| 🔄 Polarity | Polarised – rotate 180 degrees if not lighting |
| 🎯 Primary Application | Turn indicators, side markers – cars and bikes |
| 📦 Pack Contents | 2 bulbs (1 pair) |
| 🔄 Return Policy | Exchange Only |
| 🇮🇳 HSN Code | 8539 |
What It Is

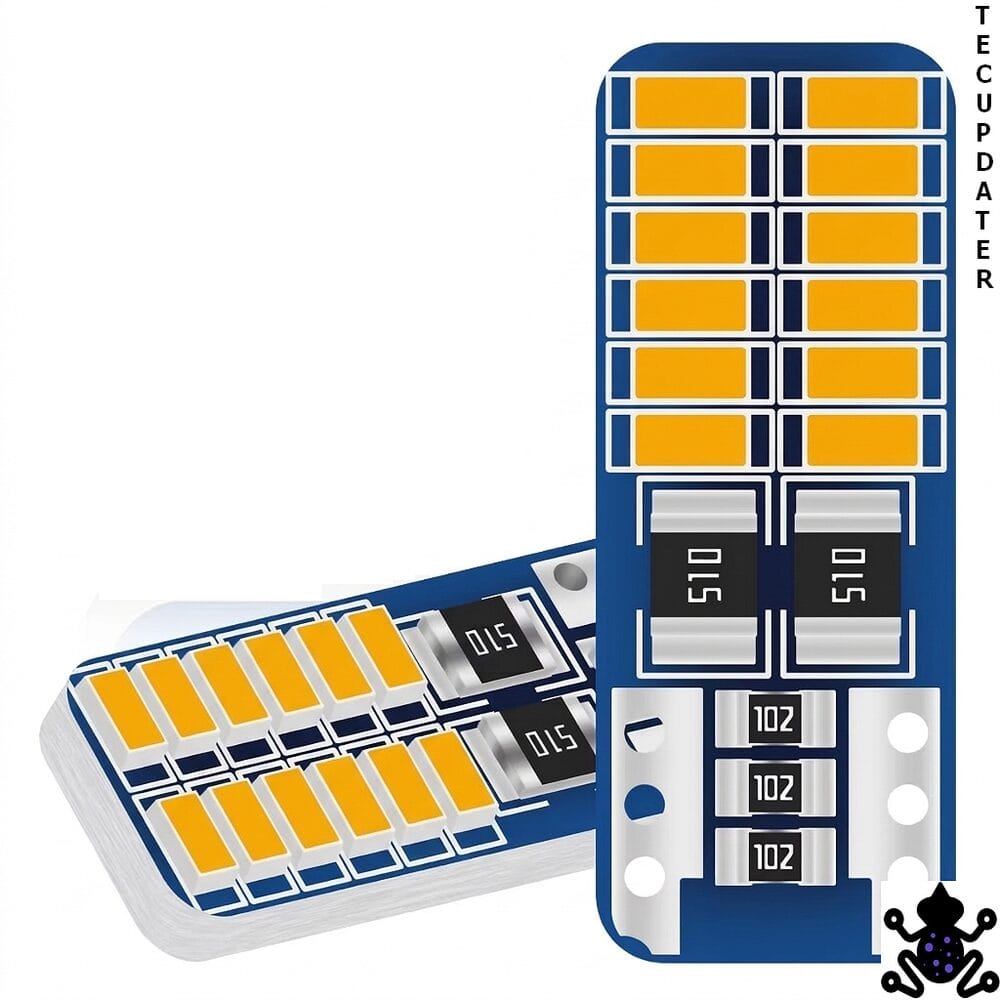

This is a pair of amber T10 W5W LED bulbs using the 3014 chip in a 24-SMD flat configuration. The bulb dimensions are identical to a standard halogen T10, making it a direct physical replacement in any socket that accepts a T10 or T15 bulb. Built-in resistors make these compatible with Canbus-equipped vehicles without triggering bulb failure warnings on the dashboard in most applications.
The amber output is suited specifically to indicator and side marker positions where amber light is the correct and legal colour. These are not white bulbs and are not intended for license plate, interior, or cabin light positions.
What Problem It Solves
Factory halogen T10 bulbs in fender-mounted side indicators and bike indicator positions produce a dull, slow-warming amber output. LED replacements in this position give a sharper, more immediate light that is more visible to other road users — particularly relevant for side indicators which are often in the peripheral vision of oncoming and adjacent traffic rather than directly ahead.
On Canbus-equipped cars, swapping to a standard LED without built-in resistors typically triggers a bulb failure warning on the instrument cluster because the LED draws significantly less current than the halogen the system expects. The built-in resistors in these bulbs mimic the load of a halogen bulb, preventing that warning in most vehicles without any additional wiring.
Installation Logic
Turn off the ignition and remove the key before starting. Access the T10 socket at the relevant position — fender indicator, side marker, or bike indicator housing. Remove the existing halogen bulb. Insert the LED bulb and ensure it is seated centrally in the holder so the contacts on the bulb align correctly with the socket contacts and do not short circuit against the resistor components on the LED unit.
These bulbs are polarised — the circuit has a positive and negative orientation. If the bulb does not light after installation, turn off power, remove the bulb, rotate it 180 degrees, and reinsert. Always turn off power before removing or inserting the bulb. Do not force the bulb into the socket at an angle.
Behaviour Explanation
Once correctly installed and oriented, the bulb operates as a direct replacement for the halogen T10 in that position. In indicator circuits the bulb will flash at the rate set by the car’s flasher relay. On Canbus vehicles the built-in resistors prevent the hyper-flash that standard LEDs cause in indicator circuits on most cars — however, if your car uses an electronic flasher relay that detects load rather than a thermal relay, hyper-flash may still occur in rare cases. On non-indicator positions such as side markers, the bulb will illuminate continuously with ignition or sidelights as the circuit dictates.
Key Compatibility
Fits any 12V vehicle with a T10 or T15 socket. Common applications include:
Cars — fender-mounted side turn indicators on: Maruti Suzuki Swift, Dzire, Baleno, Vitara Brezza, Wagon R; Hyundai i20, Verna, Creta; Tata Nexon, Altroz, Punch; Honda City, Amaze; Toyota Innova, Fortuner; Volkswagen Polo, Vento, Ameo; Skoda Rapid, Octavia; Mahindra XUV700, Scorpio N; Kia Seltos, Sonet
Bikes — indicator positions on bikes using T10 or T15 sockets including Royal Enfield, Bajaj, Hero, Honda, TVS, and Yamaha models with T10 or T15 indicator fitment
✖ 12V vehicles only — not suitable for 24V trucks or commercial vehicles ✖ Not suitable for headlight, fog lamp, or brake light positions ✖ Amber colour only — not suitable for positions requiring white light
Who Should Buy
Car owners replacing fender side indicators and bike owners replacing indicator bulbs where the socket is T10 or T15. Also suitable for any other 12V position that accepts a T10 and requires amber output.
Who Should Not Buy
Anyone looking for white T10 bulbs for license plate, interior, or parking light positions — this is an amber bulb and the colour is fixed. Not suitable for 24V vehicles. Not suitable for headlight or fog lamp positions.
FAQs
This amber T10 W5W LED bulb pair carries a 6 month warranty. The return policy is exchange only.
These bulbs have built-in resistors that mimic the load of a halogen bulb, which prevents the bulb failure warning that standard LEDs often trigger on CANBUS-equipped vehicles. This works in most vehicles, though results can still vary by car electronics.
These bulbs are polarised. If a bulb does not light up, turn off power, remove it, rotate it 180 degrees, and reinsert it. Always switch off power before removing or inserting the bulb, and avoid forcing it into the socket at an angle.
Yes, for bikes using a T10 or T15 indicator socket, including indicator positions on Royal Enfield, Bajaj, Hero, Honda, TVS and Yamaha models fitted with T10 or T15 sockets.
No. This is a fixed amber bulb intended for turn indicator and side marker positions where amber output is required. It is not meant for positions that need white light, such as license plate or interior lighting.
The pack contains 2 bulbs, sold as one pair.
The built-in resistors are designed to prevent the hyper-flash that standard LEDs can cause in indicator circuits on most cars with thermal flasher relays. However, if your car uses an electronic flasher relay that detects load differently, hyper-flash may still occur in rare cases.
This bulb size and fitment is commonly used in fender-mounted side indicators on cars including the Maruti Suzuki Swift, Dzire, Baleno, Vitara Brezza and Wagon R, Hyundai i20, Verna and Creta, Tata Nexon, Altroz and Punch, Honda City and Amaze, Toyota Innova and Fortuner, Volkswagen Polo, Vento and Ameo, Skoda Rapid and Octavia, Mahindra XUV700 and Scorpio N, and Kia Seltos and Sonet.
No. This bulb is designed for 12V vehicles only and is not suitable for 24V trucks or commercial vehicles.
No. This T10/T15 bulb is designed for indicator and side marker positions, not for headlight or fog lamp positions.
