TecUpdater Delphi Horn Harness for Suzuki, Tata & Mahindra – Plug & Play INFAC & Universal Horn Adapter

Many Tata and Mahindra owners upgrade their factory horn soon after purchasing the vehicle. Whether it’s the refined dual-tone sound of Hyundai and Kia INFAC horns or the proven performance of Bosch, Minda, Roots and Hella horns, the biggest challenge isn’t fitting the horn—it’s connecting it properly.

Most factory horn circuits on Tata and Mahindra vehicles use a Delphi-type connector that does not directly match popular aftermarket horns. The common workaround is to cut the factory wiring, splice new terminals or use temporary connectors. Although these methods may get the horn working, they permanently alter the vehicle’s original wiring harness, make future servicing difficult and often result in untidy installations.

The TecUpdater Delphi Horn Harness has been developed to eliminate these compromises by providing the correct connector interface for the most common horn upgrades without modifying the vehicle’s electrical system.

Unlike universal wiring kits, this is not a loose collection of wires and terminals. Every harness is manufactured using factory-style connectors, automotive-grade copper conductors and heat-resistant insulation to deliver an installation that looks and functions like an OEM fitment. Once installed, the harness integrates seamlessly into the original wiring without exposing bare conductors or requiring additional crimping.

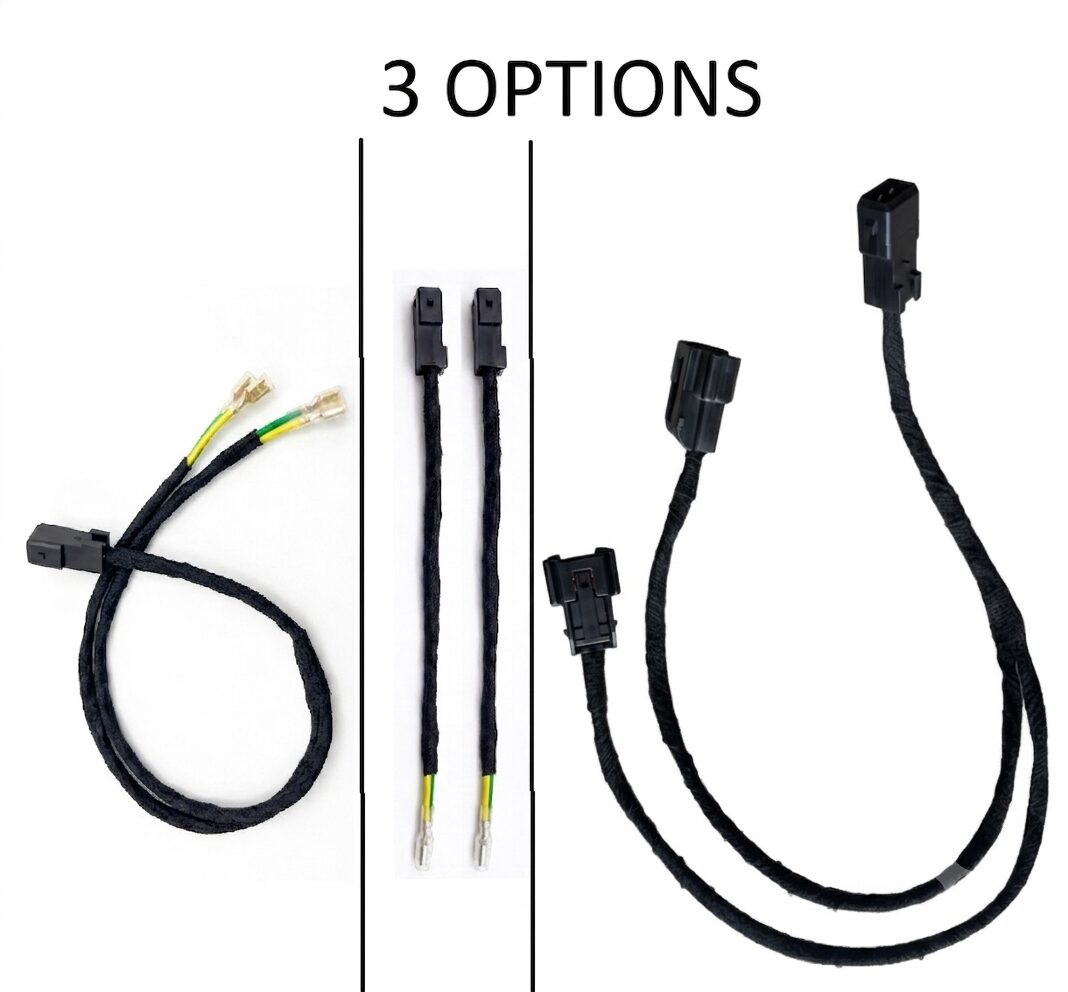

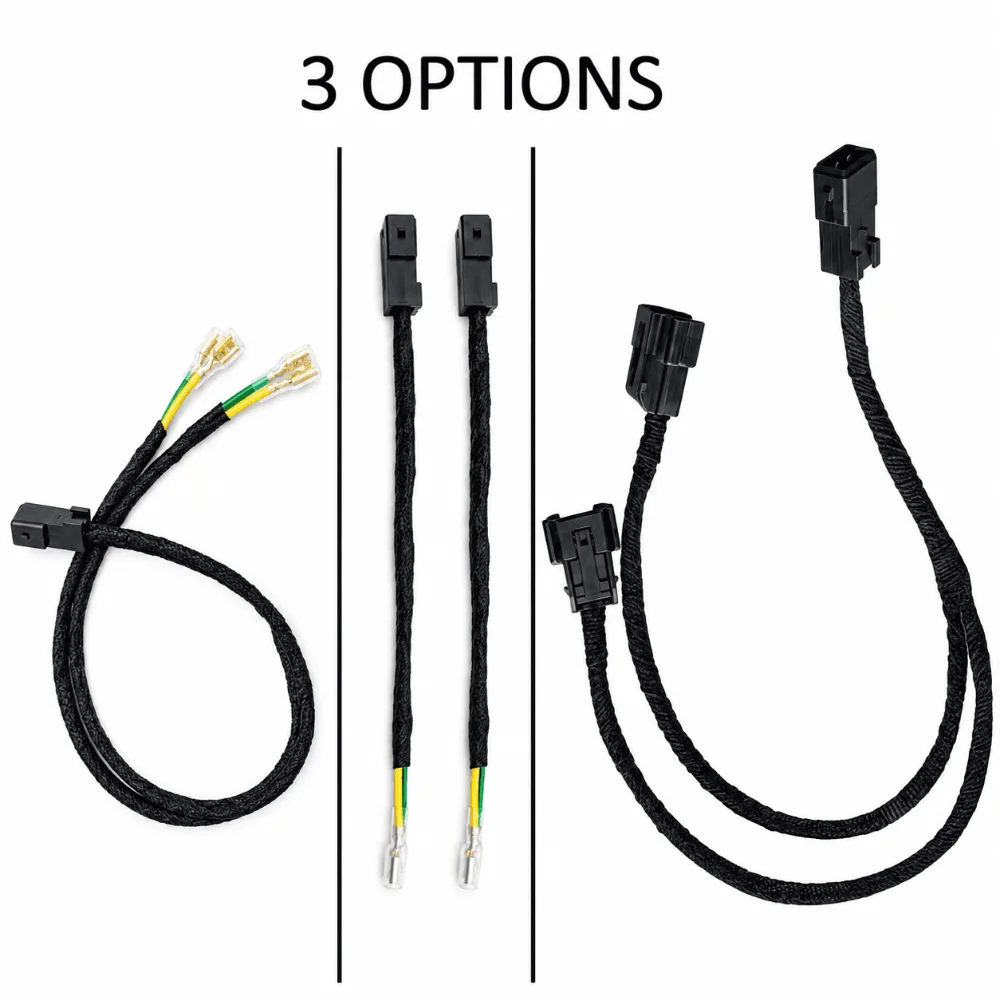

Since different vehicles and horn upgrades require different connector arrangements, this product is offered in three variants so you can choose the one that matches both your vehicle and the horns you intend to install.

The INFAC Splitter is designed for Tata and Mahindra vehicles equipped with a single factory Delphi horn connector where the owner wishes to install Hyundai or Kia dual-tone INFAC horn sets. The harness accepts the factory Delphi connector on the vehicle side and divides the output into two dedicated INFAC connectors, allowing direct installation of horn sets commonly sourced from the Creta, Venue, Verna, Alcazar, Tucson, Seltos, Sonet, Carens and similar vehicles.

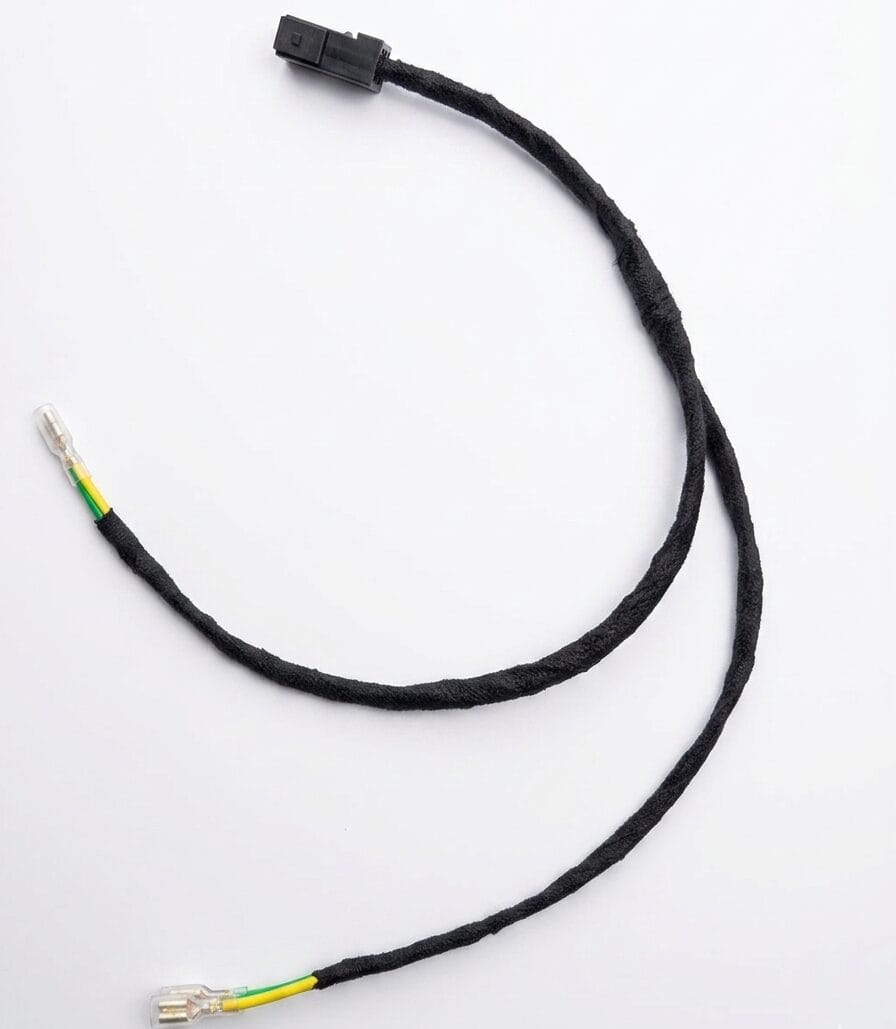

The Universal Splitter is intended for owners upgrading to aftermarket horns that use conventional thimble terminals. It converts the single factory Delphi connector into two standard horn terminals, making it suitable for Bosch, Minda, Roots, Hella, Hella Chrome Trumpet and most other aftermarket dual-horn sets available in India.

The Dual Delphi Adapter Pair is built for vehicles that already have factory dual horns. These vehicles have two separate Delphi connectors from the factory, but most replacement horns use standard thimble terminals instead. This adapter pair converts each factory connector individually, allowing aftermarket horns to be installed without disturbing the original wiring. It is the ideal solution when replacing factory dual horns with Bosch, Minda, Hella, Roots or similar aftermarket options.

Installation is straightforward and does not require any special tools or electrical modifications. Disconnect the original horn connector, plug the TecUpdater harness into the factory socket and connect the output terminals to the replacement horns. Since the correct connectors are already fitted, there is no need to cut insulation, crimp additional terminals, solder wires or fabricate custom wiring. The installation remains completely reversible, allowing the original horns to be reinstalled at any time without repairing or replacing the vehicle harness.

The harness itself performs no electrical conversion or amplification. It simply provides the correct mechanical and electrical interface between the factory horn circuit and the replacement horns. In the splitter variants, the factory horn signal is distributed to both horns so they operate together, producing the familiar dual-tone sound. In the adapter variant, each factory horn output is converted to a standard terminal, preserving the original dual-horn wiring while allowing the use of aftermarket horns.

Every harness is manufactured using automotive-grade copper wiring selected for reliable current carrying capacity and low voltage drop. OE-grade insulation protects the conductors from heat, vibration and moisture commonly encountered inside the engine compartment, while factory-style locking connectors ensure secure engagement and dependable electrical contact over long-term use.

Whether you are fitting Hyundai Creta horns to a Tata Nexon, installing Bosch Europa horns on a Mahindra Scorpio N, upgrading a Punch with Minda horns, replacing factory horns on an XUV700 or fitting Hella trumpet horns to a Harrier, this range provides the correct connector solution for a clean, professional installation. Instead of adapting your vehicle to suit the horn, the TecUpdater harness is engineered to adapt the horn to your vehicle while preserving the integrity of the original wiring system.
