ISO to Quadlock CANBUS Adapter Harness for VW & Skoda – RCD330, RCD340, RCD360

ISO to Quadlock Adapter Harness — ISO to Quadlock CANBUS harness for VW and Skoda. It is available in extension or T-Harness variants for RCD330, RCD340, RCD360. No wire cutting required.

ISO To Quadlock Adapter Harness — Overview

The ISO to Quadlock Adapter Harness connects ISO wiring to Quadlock-equipped RCD330, RCD340, and RCD360 head units in VW and Skoda models such as the Polo, Vento, and Octavia. Offered as an extension harness or an OEM-style T-harness with twisted CAN pairs, this ISO to Quadlock adapter harness passes the CAN bus through with no cutting or coding.

ISO to Quadlock CANBUS Adapter Harness for VW and Skoda – Extension and T-Harness Variants

What It Is

This is an ISO Male to Quadlock Female CANBUS adapter harness for VW and Skoda vehicles fitted with RCD-series head units. It bridges the factory Quadlock socket behind the head unit to an ISO connector format, allowing aftermarket devices, modules, and accessories to interface with the vehicle’s audio and CAN bus wiring without cutting or splicing the factory loom.

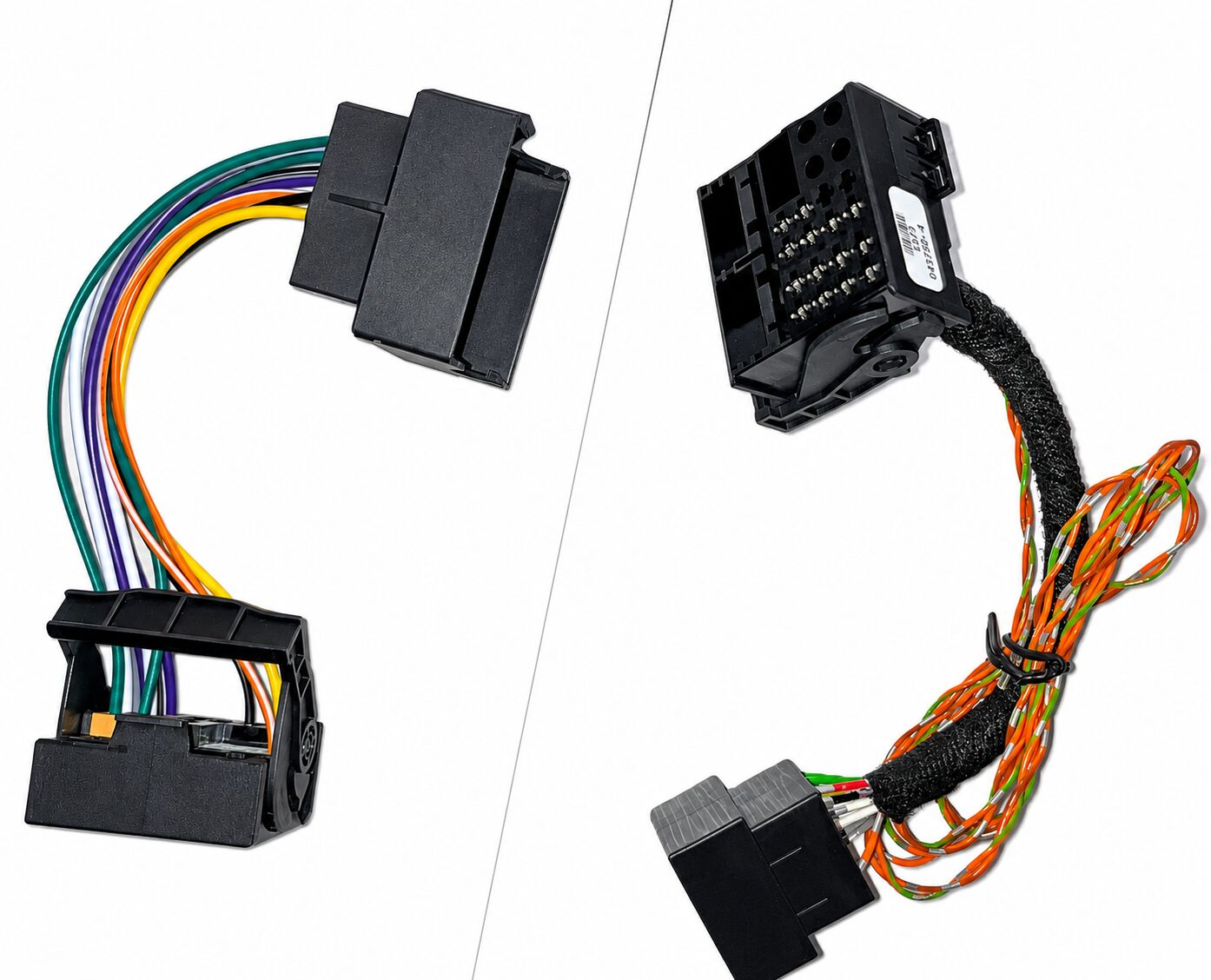

Two variants are available, each suited to a different installation purpose. The Quadlock Extension Harness is a direct pass-through unit using standard automotive wires — suited for extending factory wiring for DSP amplifiers, signal testing, or bench work. The OEM Quadlock T-Harness is built with twisted CAN bus pairs and wrapped in OEM-style cloth tape, designed to sit permanently in the wiring path between the car and the head unit, providing clean access points for CarPlay adapters, reverse cameras, CAN modules, and other retrofit electronics.

What Problem It Solves

The Quadlock connector system used in VAG vehicles consolidates multiple signal types — power, audio, CAN bus, steering controls — into a single compact connector block. Accessing individual signals from this connector without the right harness means either cutting factory wiring or using probes, both of which are unsuitable for permanent installations. This harness provides a clean, non-destructive access point to the Quadlock signal path.

The choice between extension and T-harness matters depending on what the installer needs. The extension harness simply lengthens the existing wiring run — useful when physical reach is the only constraint, or when temporarily accessing signals for testing. The T-harness intercepts the connection between the car and the head unit, providing stable, dedicated access points for modules that need to read or inject signals into the CAN bus or audio path on a permanent basis.

Installation Logic

Unplug the existing Quadlock connector from the back of the head unit. Plug the harness into the vehicle-side Quadlock socket. For the Extension Harness, plug the head unit back into the harness output. For the T-Harness, the harness sits in the signal path with the head unit plugged into one end and the vehicle connector into the other, while the additional access leads route to the CarPlay adapter, camera module, or CAN interface being installed. No wire cutting, no splicing, and no coding is required.

Behaviour Explanation

Both variants pass the CAN bus through without interruption. On the Extension Harness, the pass-through is transparent — signals travel from car to head unit as they would on the stock connection, simply with a longer physical path. On the T-Harness, the twisted CAN pairs and OEM cloth tape construction maintain signal integrity across the interception point, which is important when CAN bus modules are tapped in, as untwisted or unshielded wiring at that junction can introduce noise or timing errors on sensitive CAN networks.

Key Compatibility

Compatible with VW Polo, Vento, Ameo, Jetta, and Passat, and Skoda Rapid, Laura, Octavia, and Yeti — all models using the standard VAG Quadlock connector system. Head unit compatibility covers RCD 310, RCD 315, RCD 320, RCD 330, RCD 340, RCD 360, and RCD 360 Pro. Both PQ and MQB platform vehicles with these head units are covered provided the Quadlock format matches.

Who Should Buy

Choose the Quadlock Extension Harness if you need to extend the factory wiring run for a DSP amplifier, signal tester, or similar application where a longer physical reach is the primary requirement. Choose the OEM Quadlock T-Harness if you are installing a CarPlay adapter, reverse camera interface, CAN bus module, or any device that needs to sit permanently in the signal path between the car and the head unit. The T-Harness is the correct choice for most permanent retrofit installations.

Who Should Not Buy

If your vehicle uses a non-standard or aftermarket head unit that does not have a VAG Quadlock connector, this harness will not apply. Vehicles on MQB-A0 platforms with a different infotainment connector format should verify Quadlock compatibility before ordering. If you are unsure which variant suits your installation, contact TecUpdater on WhatsApp with details of the device being installed before ordering.

Benefits

Two purpose-built variants cover the full range of Quadlock access requirements — extension for reach, T-harness for permanent module integration. No wire cutting or factory loom modification at any stage. The T-Harness uses twisted CAN pairs and OEM cloth tape for a factory-quality result inside the dashboard. Both variants are compatible with the same vehicle and head unit range, making selection straightforward once the installation type is known.
